Store / Bikes + Bike Frames / Road Bikes

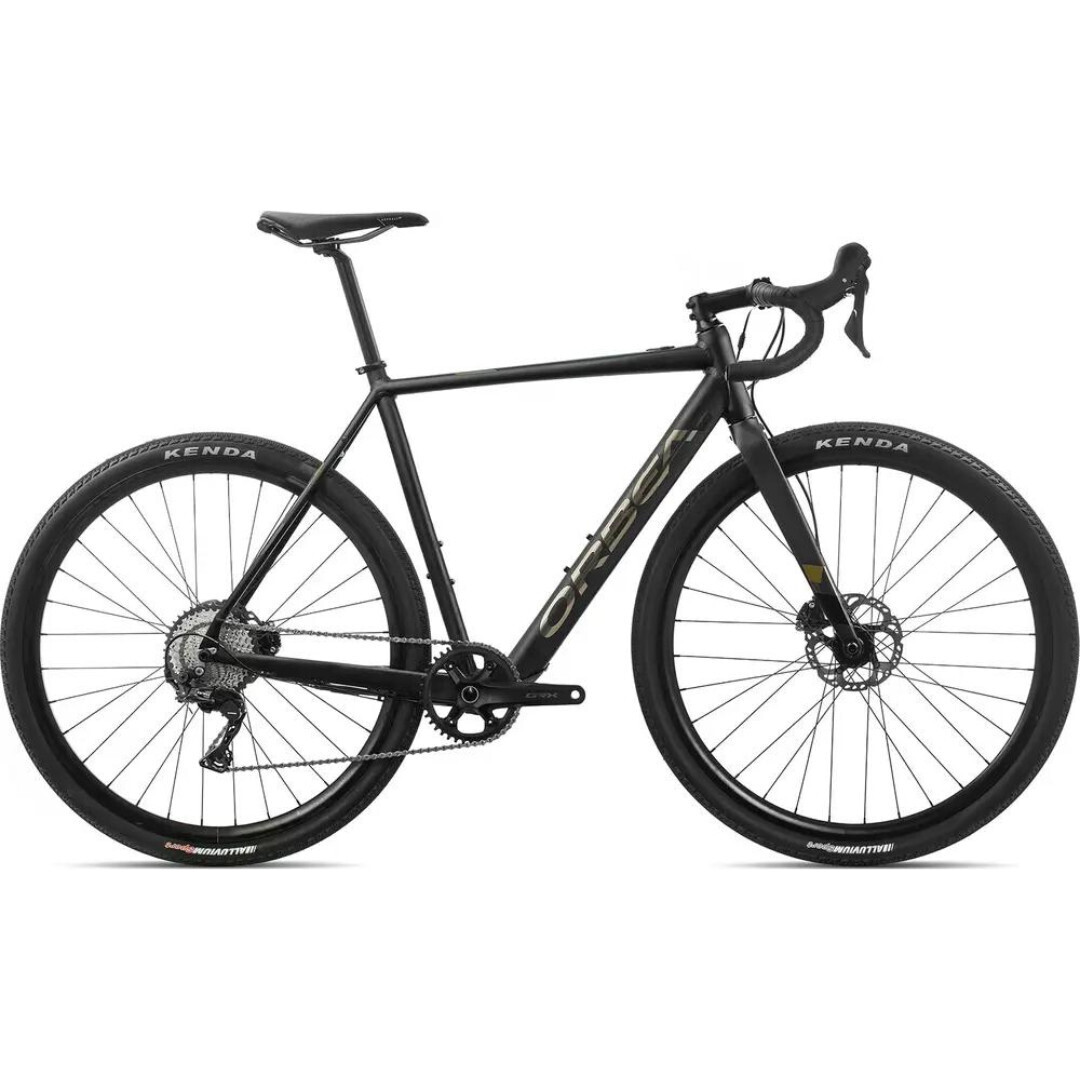

Orbea Gain D31 20mph
+4
+3
+2

Orbea Gain D31 20mph

$3,299.99
Sold out
Sold out
Product Details
Brand: Orbea

Specs

Build
Frame

Orbea Gain Hydro, Aluminum 6000 series, Orbea Tube Shaping, Flat Mount Disc Brakes, 135x9 QR, Carrier and Mudguards compatible, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, in

Colors: Black (Matte-Gloss); White (Gloss); Green-Red (Gloss); Turquoise - Orange (Gloss)
Fork

Speed 400mm Carbon Flat mount
Headset

VP-Z104PD 1-1/8" Semi-Cartridge
Stem

OC1 31.8mm interface -7º
Handlebar

OC1 All Road, reach 80mm, drop 125mm, flare 12º
Saddle

Selle Royal Asphalt GR
Seatpost

OC2 Carbon 27.2 Offset 20
Groupset
Rear Derailleur

Shimano RX812 GS
Crank

Shimano GRX RX600 40t
Shifters

Shimano ST-RX600
Cassette

Shimano SLX M7000 11-42t 11-Speed
Chain

KMC X11
Brakes

Shimano RX400 Hydraulic disc
Wheels
Rims

Ready GR
Tires

Kenda Alluvium K1226 700X40c DTC
Electric Components
Motor

Ebikemotion X35
Battery

Ebikemotion 36V/6.9A ANT+
Charger

Ebikemotion X35

Geometry

Hover over the table below to highlight frame dimensions.

Suspicious data

XS SM MD LG XL
Wheels 700c 700c 700c 700c 700c
Stack 535 555 575 600 625
Reach 378 387 395 402 410
Stack/Reach Ratio 1.42 1.43 1.46 1.49 1.52
Top Tube Length 522 546 560 574 595
Seat Tube Length 460 510 555 585 610
Seat Tube Angle 75.0 74.0 74.0 74.0 73.5
Head Tube Length 109 127 150 176 203
Head Tube Angle 71.0 72.0 72.0 72.0 72.3
BB Drop 😞 😞 😞 😞 😞
Front Center 746 751 767 780 798
Chainstay Length 430 430 430 430 430
Wheelbase 1,016 1,022 1,037 1,051 1,067
Rake 51 51 51 51 51
Trail -109 -111 -113 -112 -119
Standover Height 754 782 815 829 876

Measurements listed in millimeters and degrees

Show More
Save this product for later
Orbea Gain D31 20mph
