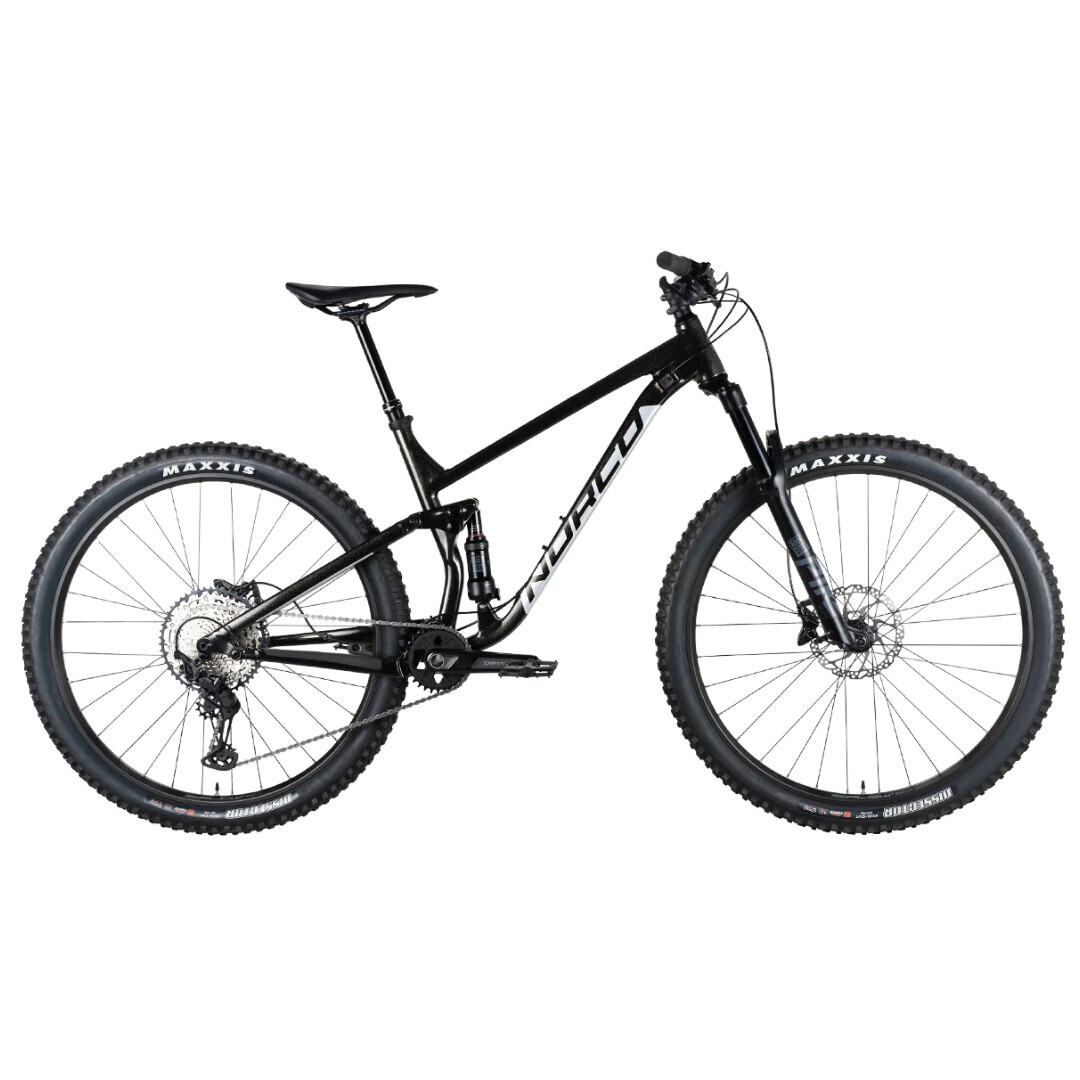

We captured everything we love about riding and put it into the Fluid FS 1. 

The double-butted aluminum frame’s progressive design and size-scaled tubing provides a premium, next-level Trail ride for every rider across all frame sizes. 

Geometry

		XS	S	M	M	L	XL
	Wheel Size	27.5"	27.5"	27.5"	29"	29"	29"
	Travel (mm front/mm rear)	130/120
	Reach	380	410	440		470	500
	Stack	568	577	587	603	612	621
HTA	Head Tube Angle	66.0			66.5
OS	Fork Offset	42			51
ST	Seat Tube Length	370	390	420		450	490
STA	Effective Seat Tube Angle	76.0
RC	Rear Centre Length	431			429
BB	Bottom Bracket Drop	18			36
BBH	Bottom Bracket Height	342
HTT	Horizontal Top Tube	522	554	586	590	623	655
WB	Wheelbase	1101	1135	1169		1204	1237
SOH	Standover	640	654	664	682	694	704
HT	Head Tube Length	100	110	120	100	110	120
	Trail	114			109
	Stem Length	40
	Crank Length	170		175
	Tire Size	2.35" - 2.6"
	Water Bottle Compatible	1 x 750 mL
